Portable Two-Way Radio

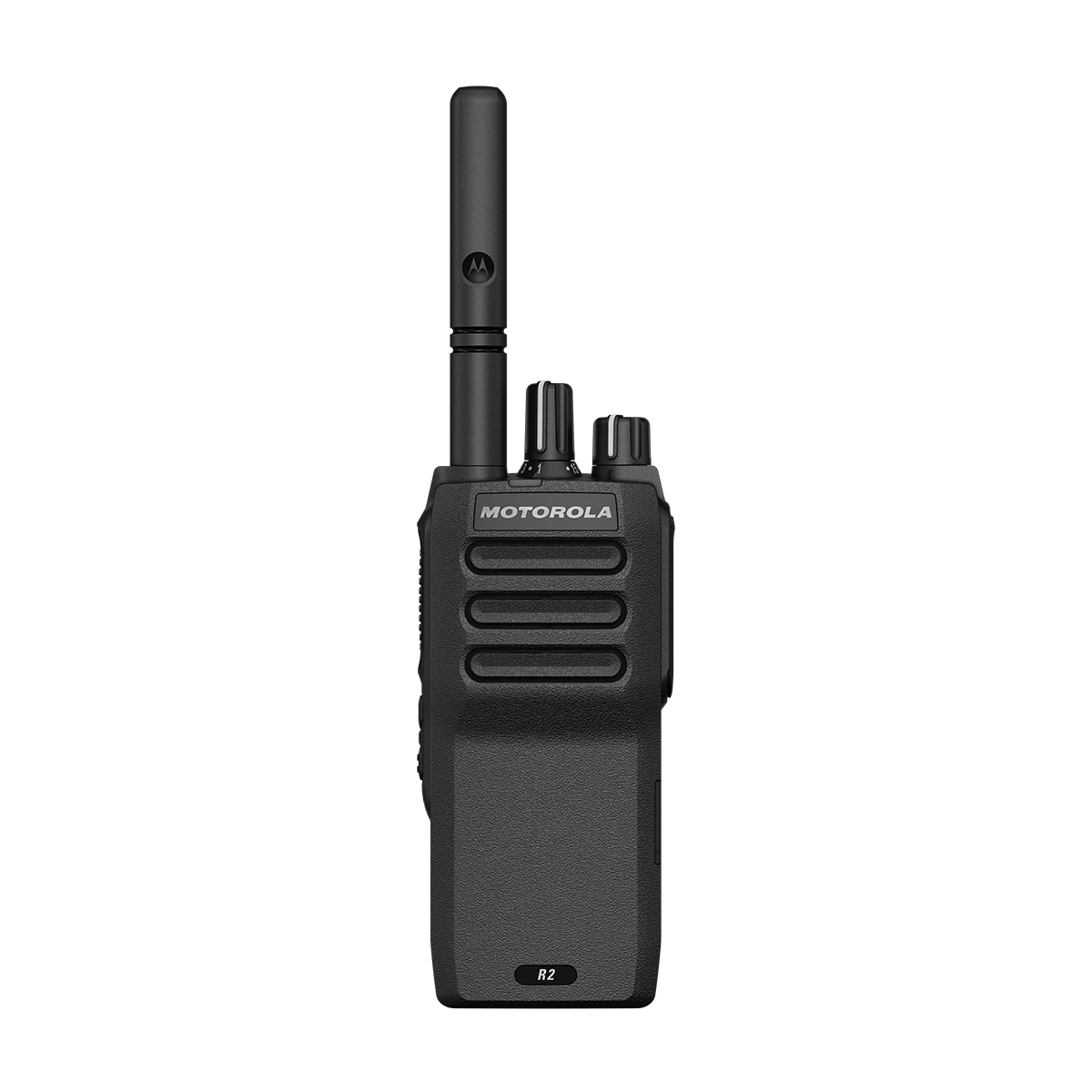

Motorola MOTOTRBO R2 Portable Two-Way Radio
An everyday workhorse portable radio with 64 channels, UHF/VHF options, rugged IP55 housing and analog or digital models.
General Specifications
| Frequency | UHF 400-480MHz, VHF 136-174MHz |
|---|---|
| Typical RF output | UHF 4W high / 1W low; VHF 5W high / 1W low |
| Channel spacing | 12.5 / 20.0 / 25.0kHz |
| Channel capacity | 64 |
| Dimensions | 125 x 55 x 37mm high capacity battery; 125 x 55 x 32mm slim battery |
| Weight | 286g high capacity battery; 261g slim battery |
| Battery life | Up to 19.5h analog / 26.5h digital with high capacity battery |
| Power supply | 7.5V nominal |
Audio and Environment
| Audio output power | 1W rated / 3W max |
|---|---|
| Maximum speech loudness | 101 phon |
| Operating temperature | -30C to +60C |
| Storage temperature | -40C to +85C |
| Dust and water intrusion | IEC60529 IP55 |
