VHF/UHF Multi-Mode Repeater

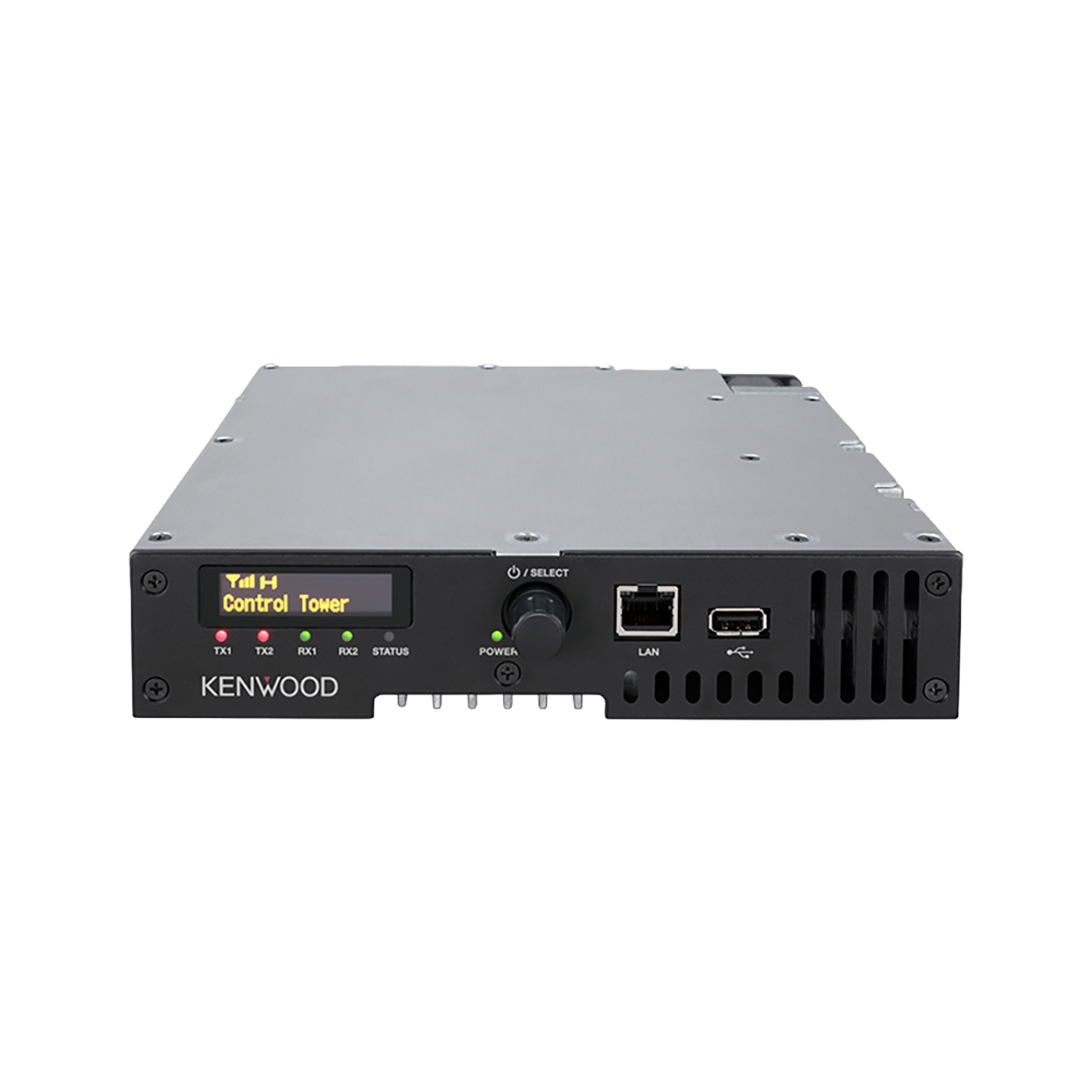

Kenwood NXR-1700 / NXR-1800 Repeater
Compact multi-mode conventional repeater supporting DMR, NXDN and FM analog operation in a space-saving 1U rack design.
General Specifications
| Frequency range | NXR-1700: 136-174MHz; NXR-1800 Type 1: 450-520MHz; Type 2: 400-470MHz |
|---|---|
| Channel capacity | 32 |
| Channel spacing | Analog 30/25/15/12.5kHz or 25/12.5kHz; Digital 12.5/6.25kHz |
| PLL channel step | 6.25 / 5 / 3.125 / 2.5kHz |
| Frequency stability | +/- 0.5ppm |
| Power supply | 10.8-15.6V DC |
| Current drain | Standby 0.6-0.7A; transmitting 12.0A max power, 9.0A at 25W |
| Operating temperature | -30C to +60C |
| Antenna impedance | 50 ohm |
| Dimensions including projections | 214.5 x 44.0 x 242.9mm |
| Dimensions excluding projections | 208.5 x 44.0 x 211.5mm |
| Weight | 1.9kg |
