VHF/UHF Mobile Transceiver

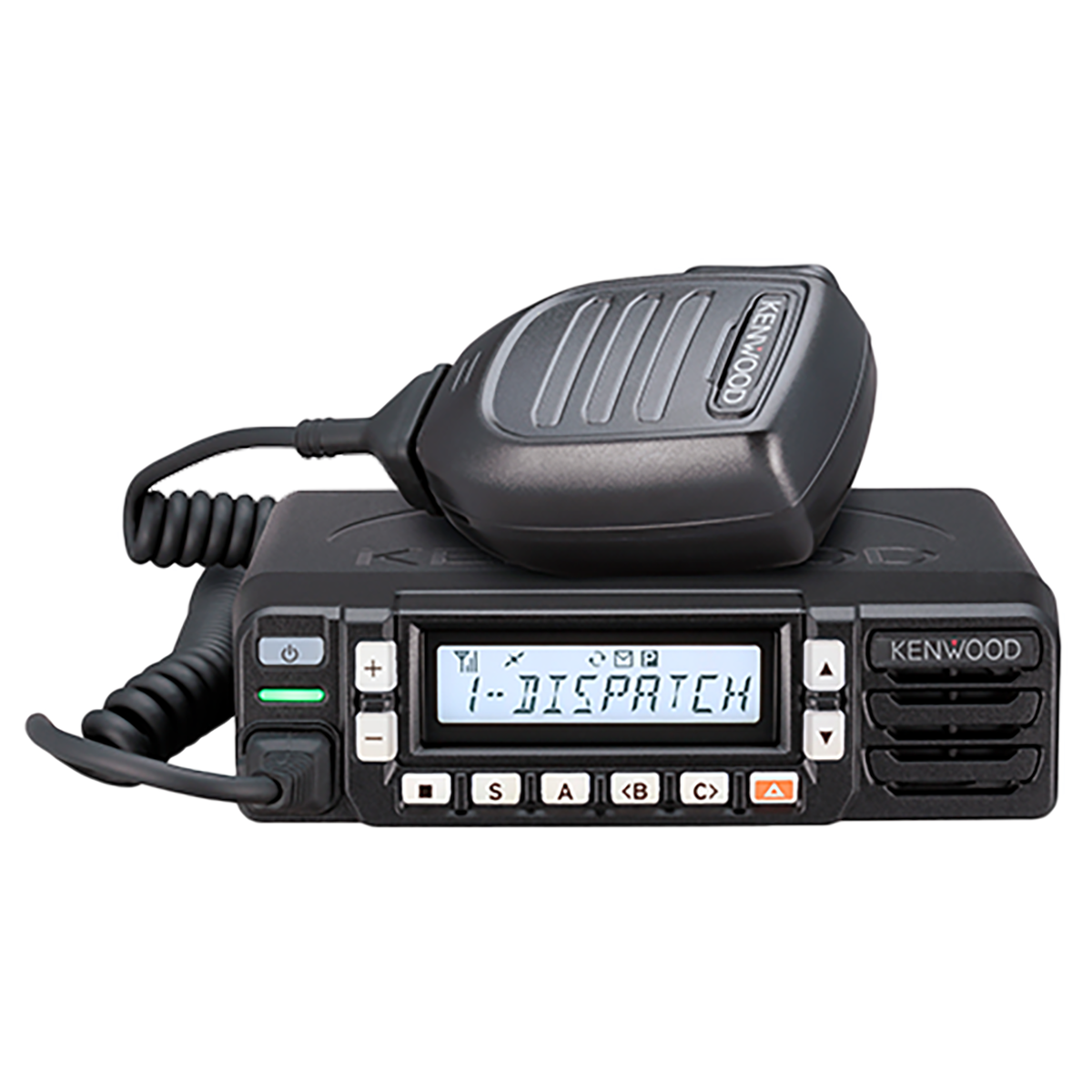

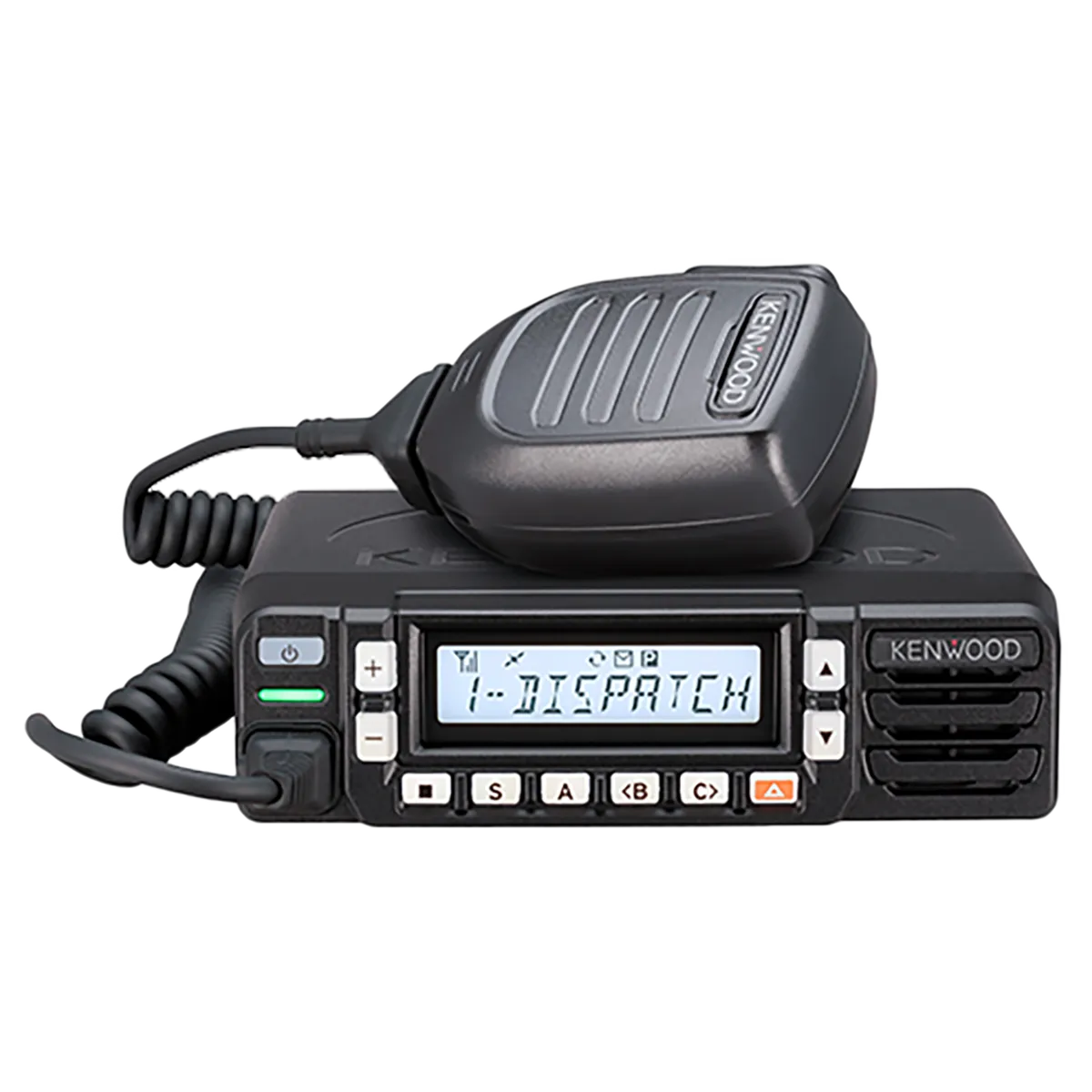

Kenwood NX-1700 / NX-1800 Mobile Transceivers
NX-1000 series mobile radios supporting NXDN, DMR and FM analog protocols with clear Kenwood audio and rugged operation.
General Specifications
| Frequency range | NX-1700: 136-174MHz; NX-1800: 400-470MHz |
|---|---|
| Max channels per radio | 260 |
| Number of zones | 128 |
| Channels per zone | 250 |
| Channel spacing | Analog 25 / 20 / 12.5kHz; Digital 12.5 / 6.25kHz |
| Operating voltage | 13.2V DC (10.8V to 15.6V DC) |
| Current drain | Standby 0.45A max, RX 2.4A max, TX 10A max |
| Operating temperature | -30C to +60C |
| Frequency stability | +/- 0.5ppm |
| Dimensions including projections | 161 x 43 x 168.2mm |
| Dimensions excluding projections | 160 x 43 x 137.7mm |
| Weight | 1.21kg |
