Analog Walkie Talkie

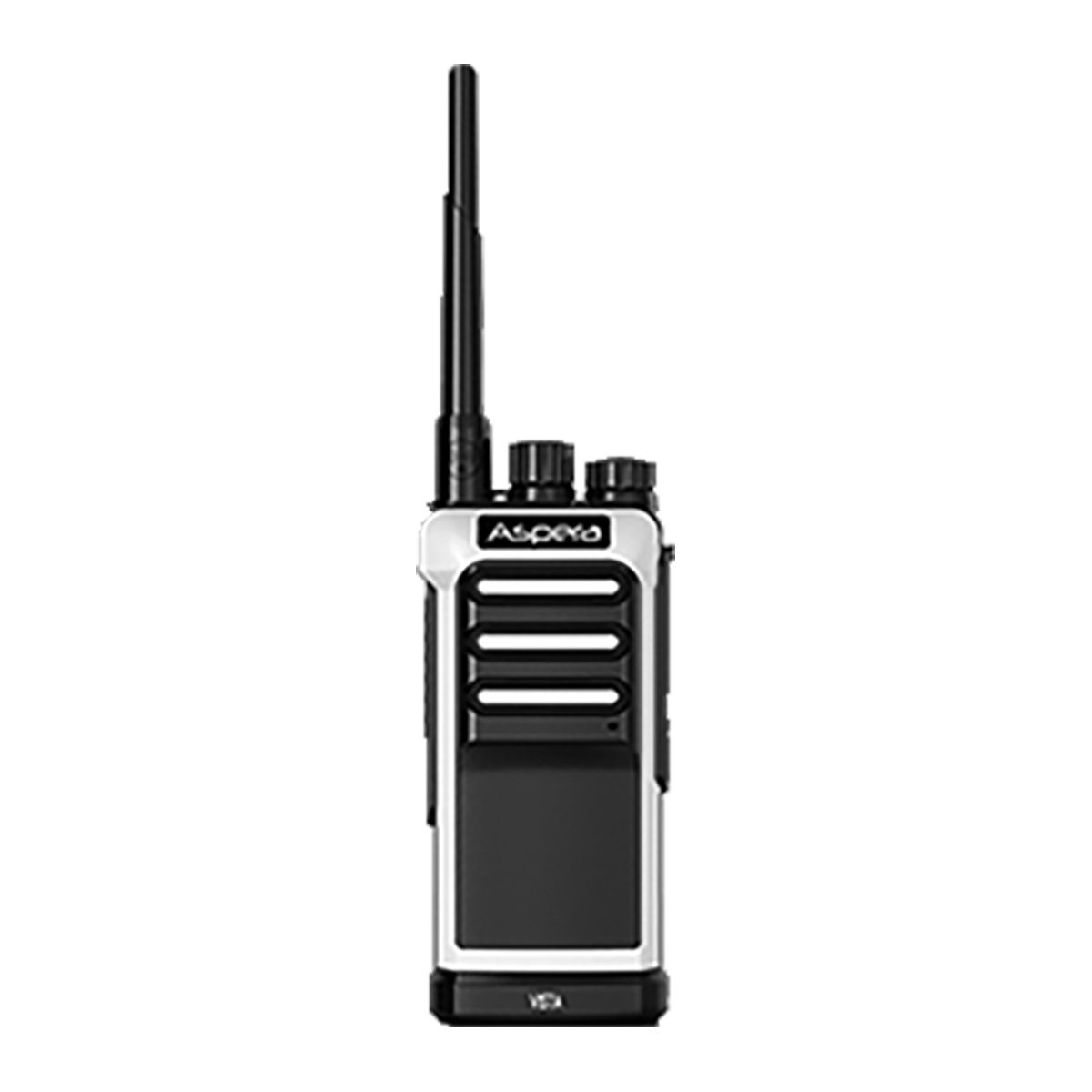

Aspera Vista Analog Walkie Talkie
Analog license-free walkie talkie with 16 channels, scan, scramble, companding and PC programming.
General Function
| Frequency range | 446.000-446.2000MHz |
|---|---|
| Battery voltage | DC 7.4V |
| Channel capacity | 16 |
| Antenna impedance | 50 ohm |
| Weight | 450g including battery and antenna |
| PLL channel spacing | 12.5kHz/25KHz |
| Battery capacity | 4200 mAh |
| Dimensions without antenna | 130 x 33 x 56mm |
Transmitter
| Modulation type | 16K0F3E / 8K0F3E |
|---|---|
| Maximum deviation | 25K <= 5kHz, 12.5K <= 2.5kHz |
| Frequency stability | +/- 2.5ppm |
| Modulation distortion | <= 5% |
| FM hum and noise | -45dB |
| Intermodulation | 67dB |
| RF power output | 0.5W |
Receiver
| Sensitivity | < 0.16uV (12dB SINAD) |
|---|---|
| Squelch selectivity | < 0.2uV |
| Adjacent channel selectivity | 25K >= 65dB, 12.5K >= 60dB |
| Spurious rejection | >= 80dB |
| Image rejection | 25K >= 45dB, 12.5K >= 40dB |
| AF outpower | >= 0.5W |
| Audio distortion | <= 5% |
| Audio power | 1W |
Environment
| Work temperature | -20C to +65C |
|---|---|
| Save temperature | -20C to +70C |
| Standard | According GJB 150-2009 and MIL-STD-810 C/D/E/F/G Standard |
